Aperçu technique
Kit cadre
Cadre:

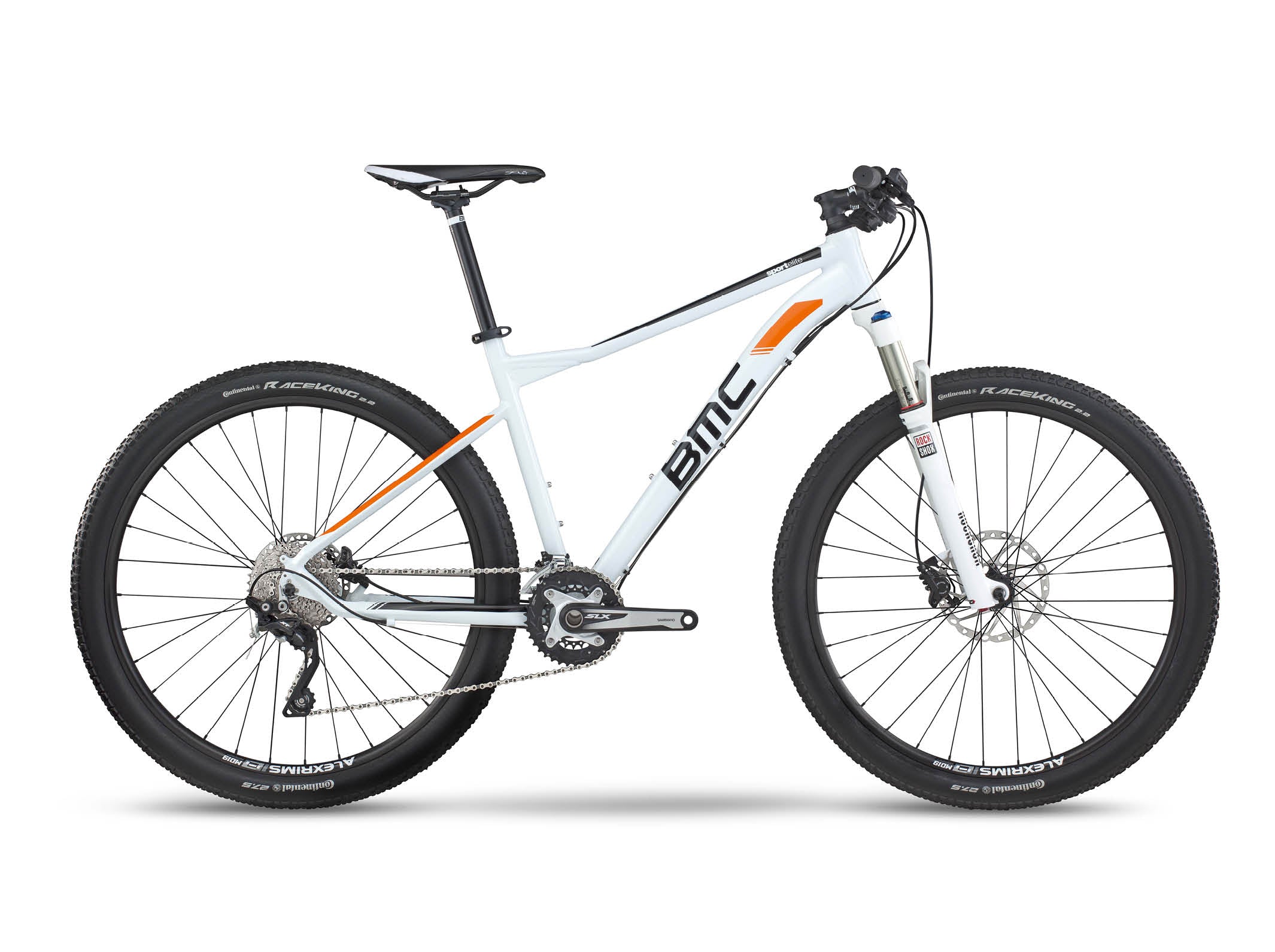

Sportelite 27.5 - Advanced Pivot System | Al-13 Premium Triple-butted - Hydroformed aluminum
Cockpit
Cintre:
BMC MFB 03 | 720mm
Potence:
BMC MSM 03
Tige de Selle:
BMC MSP 03
Selle:
Selle Royal Seta
Transmission
Vitesses:
2 x 10
Pédalier:
Shimano Deore | 38-24T
Cassette:
Shimano CS-HG50 | 11-36T
Chaîne:
KMC X-10
Dérailleur Avant:
Shimano Deore
Dérailleur Arrière:
Shimano XT | Shadow Plus
Leviers de Vitesses:
Shimano Deore
Freins
Leviers de Frein / Étriers:
Shimano BR-M445 (160/160mm)
Roues
Jantes:
Alex MD19
Moyeux:
Shimano Deore
Pneus:
Continental: x -King (F) / Race King (R) Perfo
Informations supplémentaires
Règlement relatif à la sécurité générale des produits (GPSR):
Consignes de sécurité GPSR (UE)
Personne responsable conformément au GPSR (UE)
| Size | XS | S | M | L |
|---|---|---|---|---|
| Rider Height | ||||
| Reach | 395 | 415 | 435 | 460 |
| Stack | 573 | 583 | 590 | 598 |
| Bar Drop | ||||
| Bar Reach | ||||
| Bar Rise | 4 | 4 | 4 | 4 |
| Bar Sweep | 9 | 9 | 9 | 9 |
| Bar Width | 720 | 720 | 720 | 720 |
| Base Bar Drop Flat Cockpit | ||||
| Base Bar Drop V-Cockpit | ||||
| Base Bar Reach Flat Cockpit | ||||
| Base Bar Reach V-Cockpit | ||||
| BB Drop | 20 | 20 | 20 | 20 |
| BB Drop (SLACK) | ||||
| BB Drop (STEEP) | ||||
| BB Height (SLACK) | ||||
| BB Height (STEEP) | ||||
| Chainstay | ||||
| Crank Length | 170 | 170 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||
| LT | BB Drop (STEEP) | ||||
| LT | BB Height (SLACK) | ||||
| LT | BB Height (STEEP) | ||||
| LT | Chainstay | ||||
| LT | Fork Length | ||||
| LT | Fork Rake | ||||
| LT | Frame Size | ||||
| LT | Front Center (SLACK) | ||||
| LT | Front Center (STEEP) | ||||
| LT | Head Tube | ||||
| LT | HT Angle (SLACK) | ||||
| LT | HT Angle (STEEP) | ||||
| LT | Reach (SLACK) | ||||
| LT | Reach (STEEP) | ||||
| LT | Rider Height | ||||
| LT | Seat Tube | ||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||
| LT | ST Angle Actual (SLACK) | ||||
| LT | ST Angle Actual (STEEP) | ||||
| LT | ST Angle Effective (SLACK) | ||||
| LT | ST Angle Effective (STEEP) | ||||
| LT | Stack (SLACK) | ||||
| LT | Stack (STEEP) | ||||
| LT | Stand Over Height (80 in Front of BB) | ||||
| LT | Stand Over Height (Lowest Point) | ||||
| LT | Top Tube (SLACK) | ||||
| LT | Top Tube (STEEP) | ||||
| LT | Wheelbase (SLACK) | ||||
| LT | Wheelbase (STEEP) | ||||
| ST | BB Drop (SLACK) | ||||
| ST | BB Drop (STEEP) | ||||
| ST | BB Height (STACK) | ||||
| ST | BB Height (STEEP) | ||||
| ST | Chainstay | ||||
| ST | Fork Length | ||||
| ST | Fork Rake | ||||
| ST | Frame Size | ||||
| ST | Front Center (SLACK) | ||||
| ST | Front Center (STEEP) | ||||
| ST | Head Tube | ||||
| ST | HT Angle (SLACK) | ||||
| ST | HT Angle (STEEP) | ||||
| ST | Reach (SLACK) | ||||
| ST | Reach (STEEP) | ||||
| ST | Rider Height | ||||
| ST | Seat Tube | ||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||
| ST | ST Angle Actual (SLACK) | ||||
| ST | ST Angle Actual (STEEP) | ||||
| ST | ST Angle Effective (SLACK) | ||||
| ST | ST Angle Effective (STEEP) | ||||
| ST | Stack (SLACK) | ||||
| ST | Stack (STEEP) | ||||
| ST | Stand Over Height (80 in Front of BB) | ||||
| ST | Stand Over Height (Lowest Point) | ||||
| ST | Top Tube (SLACK) | ||||
| ST | Top Tube (STEEP) | ||||
| ST | Wheelbase (SLACK) | ||||
| ST | Wheelbase (STEEP) | ||||
| Fork Length | 510 | 510 | 510 | 510 |
| Fork Rake | 42 | 42 | 42 | 42 |
| Frame Size | ||||
| Front Center | 655 | 678 | 701 | 729 |
| Front Center (SLACK) | ||||
| Front Center (STEEP) | ||||
| Head Tube | 100 | 110 | 117 | 125 |
| Head Tube Angle | 69 | 69 | 69 | 69 |
| HT Angle (SLACK) | ||||
| HT Angle (STEEP) | ||||
| Pad Reach Flat Cockpit | ||||
| Pad Reach V-Cockpit | ||||
| Pad Stack Flat Cockpit | ||||
| Pad Stack V-Cockpit | ||||
| Reach (SLACK) | ||||
| Reach (STEEP) | ||||
| Rear Center | 435 | 435 | 435 | 435 |
| Saddle Height Range | ||||
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 380 | 400 | 430 | 480 |
| Seatpost Drop | ||||
| Seatpost Length | 350 | 350 | 350 | 350 |
| Seatpost Offset | ||||
| ST Angle @750mm Saddle Height (SLACK) | ||||
| ST Angle @750mm Saddle Height (STEEP) | ||||
| ST Angle Actual (SLACK) | ||||
| ST Angle Actual (STEEP) | ||||
| ST Angle Effective (SLACK) | ||||
| ST Angle Effective (STEEP) | ||||
| Stack (SLACK) | ||||
| Stack (STEEP) | ||||
| Stand Over Height (80 in Front of BB) | ||||
| Stand Over Height (Lowest Point) | ||||
| Standover Height | ||||
| Stem Angle | 6 | 6 | 6 | 6 |
| Stem Length | 70 | 70 | 70 | 70 |
| Top Tube | 569 | 590 | 610 | 635 |
| Top Tube (SLACK) | ||||
| Top Tube (STEEP) | ||||
| Trail | 87 | 87 | 87 | 87 |
| Wheelbase | 1095 | 1115 | 1135 | 1160 |
| Wheelbase (SLACK) | ||||
| Wheelbase (STEEP) |
