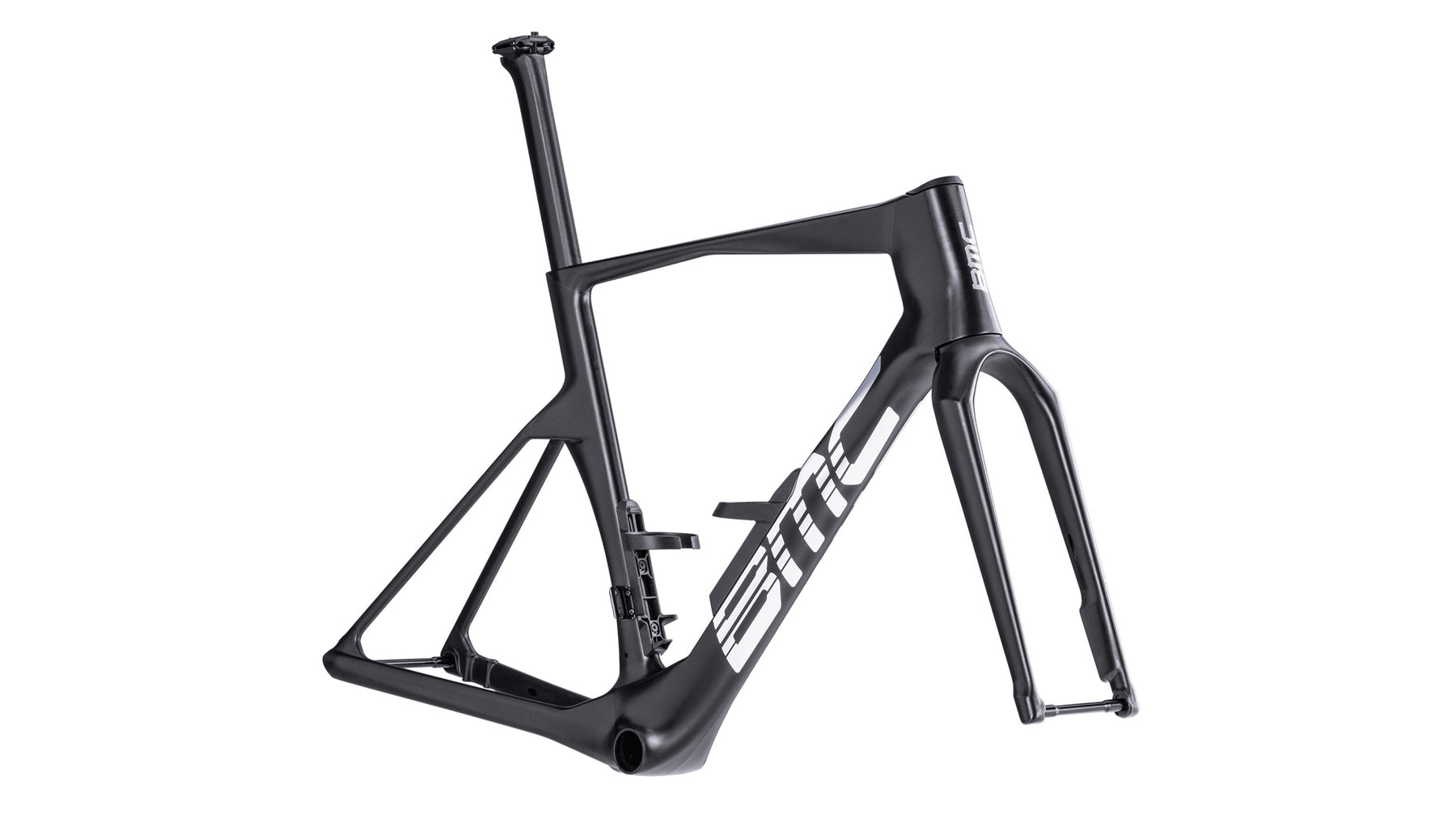

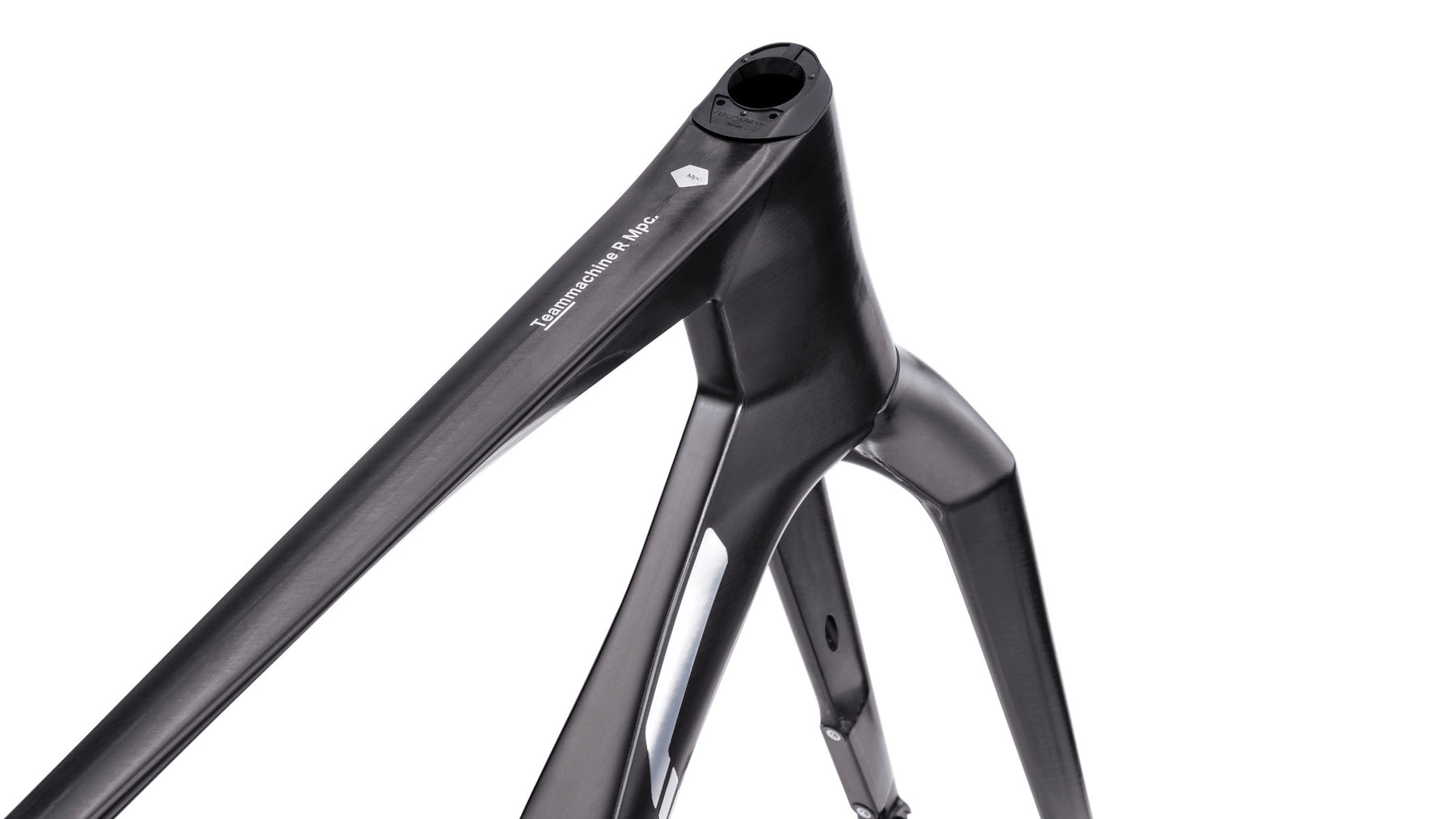

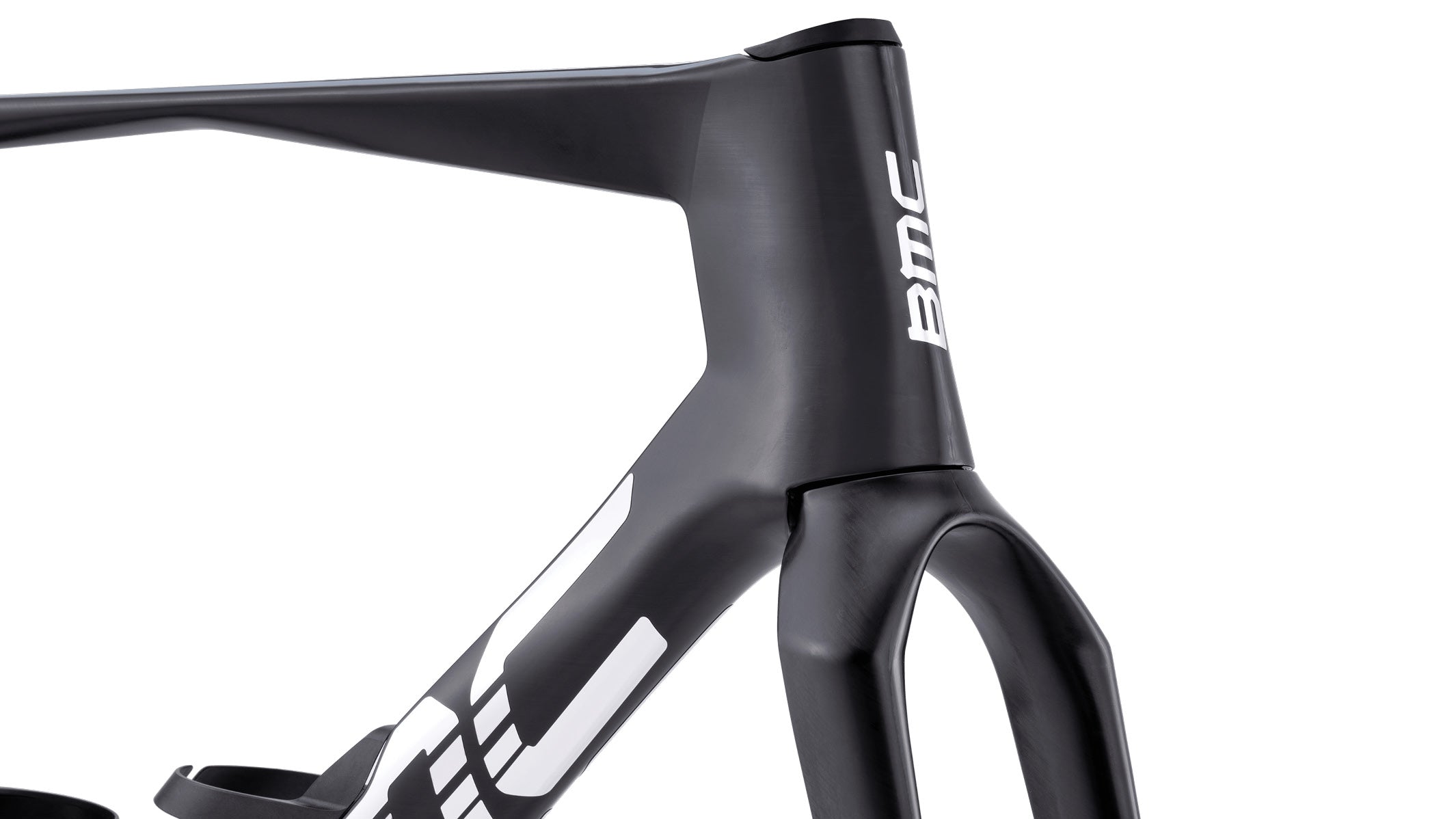

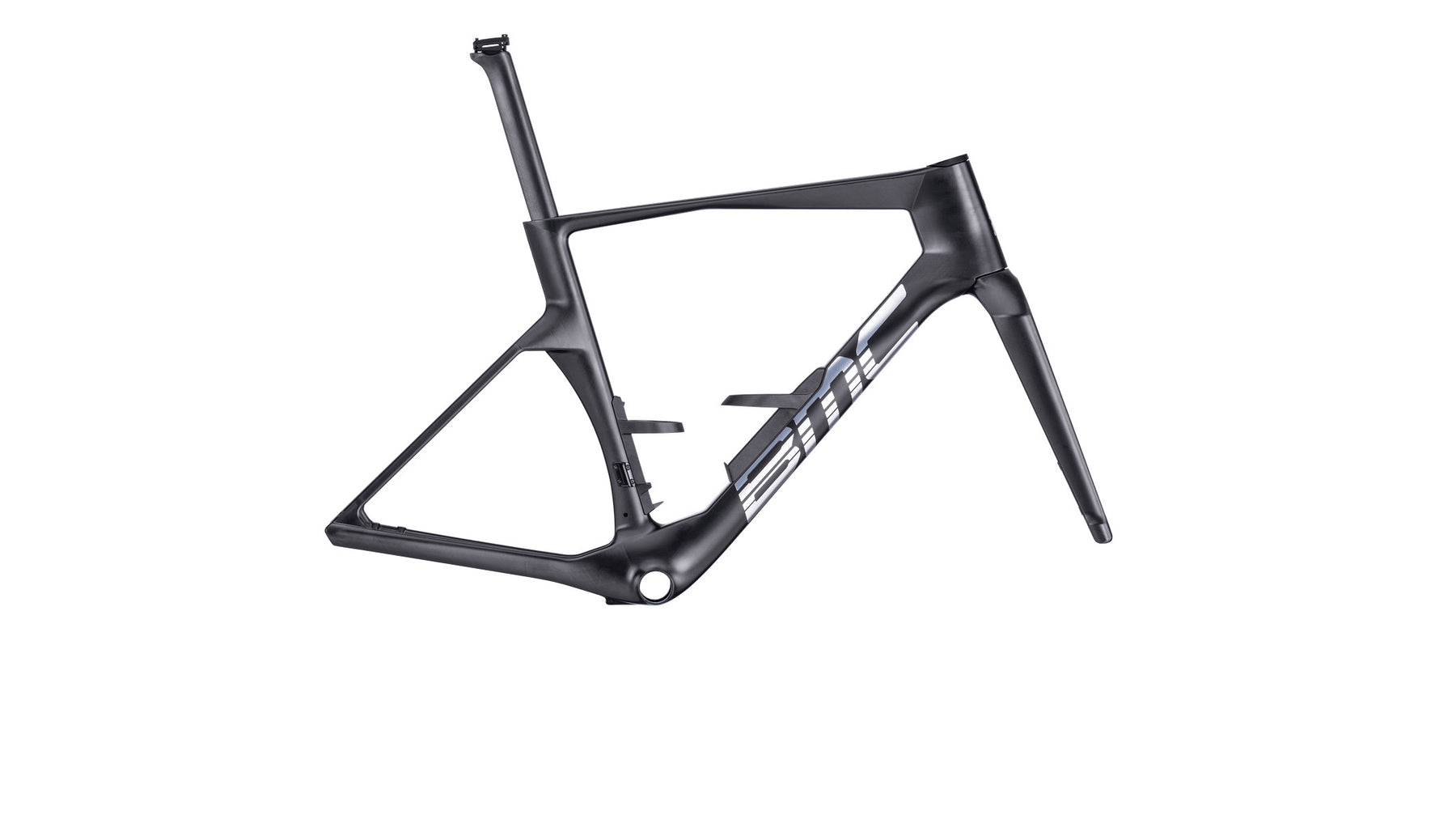

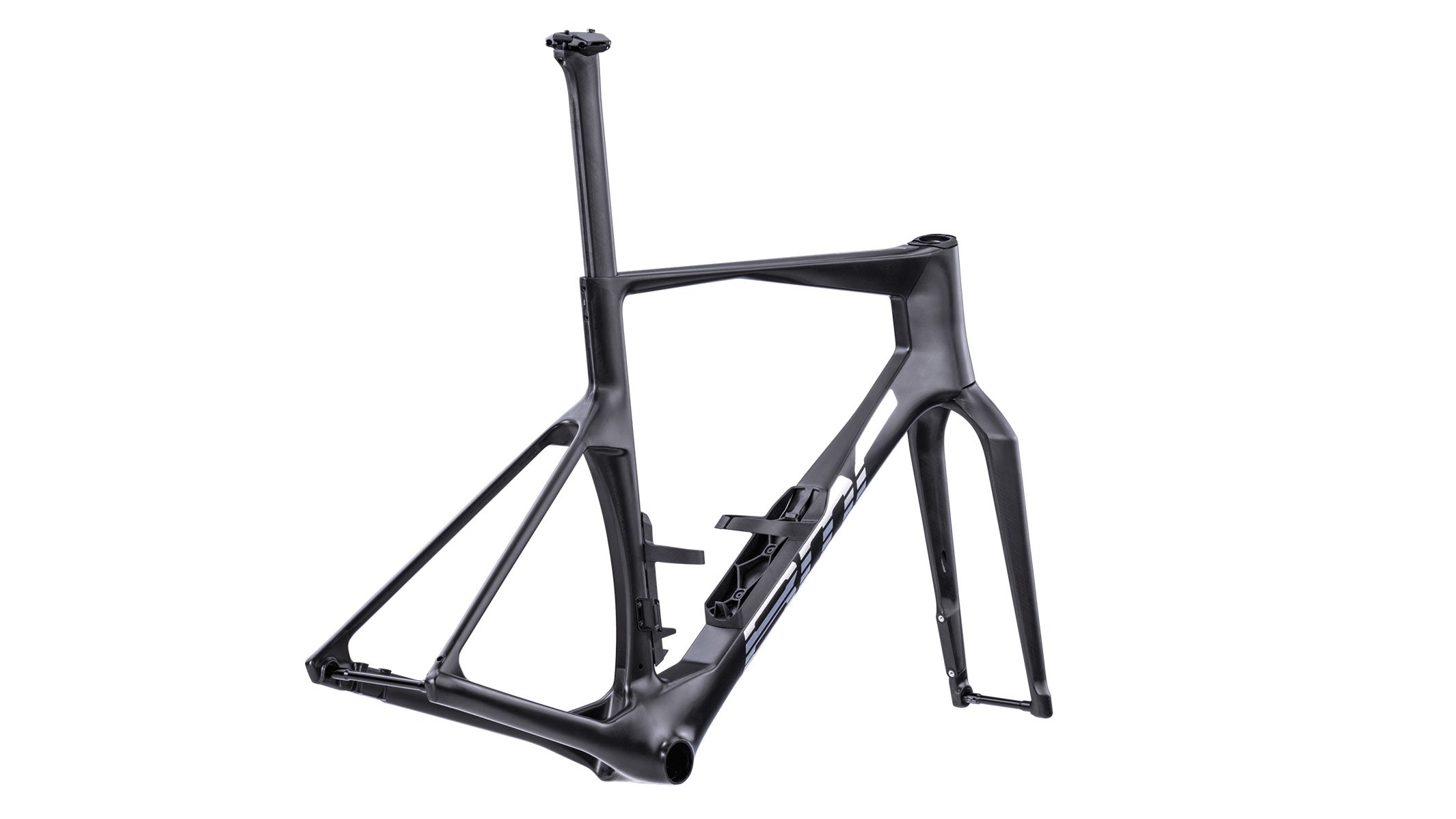

Teammachine R Mpc. Frameset

The Teammachine R Mpc. is more than just a bike – it’s a statement of innovation and speed. What sets the Mpc. edition apart is its attention to detail: unparalleled precision in the carbon layup, zero excess material, and a flawless surface that requires no rework. Handmade in Europe by master craftsmen, ensures that every Teammachine R Mpc. is a masterpiece of design and engineering.


Teammachine R Mpc. Frameset


Teammachine R Mpc., a cutting-edge race bike that sets a new standard in speed, precision, and performance. Building on the already leading-edge platform, the Masterpiece treatment elevates the Teammachine R 01 to even greater heights.

Regular priceUSD 8,999.00
USD /
SKU: 30005779
Size
  • Preorder - dispatch may take up to 60 days

Teammachine R Mpc. Frameset

Parts & Accessories


Technical Overview

Frameset

Frame:
Teammachine R Mpc Premium Carbon with Aerocore Design | ICS Technology - Stealth Cable Routing | Integrated Aerocore Bottles Cages | Stealth Dropout Design | PF86 Bottom bracket | Flat mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R Mpc Premium Carbon | ICS Technology - Stealth Cable Routing | Stealth Dropout Design | Flat mount Disc | 12 x 100mm Thru-Axle

Seat

Seatpost:
Teammachine R Mpc Premium Carbon | 10mm Offset

Accessories

Aerocore Bottle Cages | Scicon gear bag | Bike sock | Mpc Metal Box Small | Owner certificate | Quality Check Seal

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
Frame 810g | Fork 390g | Seatpost 150g

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size 47 51 54 56 58 61
Rider Height <166 166 - 174 172 - 180 178-186 184-192 >190
Reach 368 378 387 393 402 409
Stack 504 528 548 563 582 608
BB Drop 69 69 69 69 69 69
Fork Length 367 367 367 367 367 367
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 185 211
Head Tube Angle 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center 410 410 410 410 410 410
Seat Angle 74 74 73.5 73.5 73 73
Seat Tube 418 463 499 519 541 570
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 10 10 10 10 10 10
Top Tube 522 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 999 1015 1030
