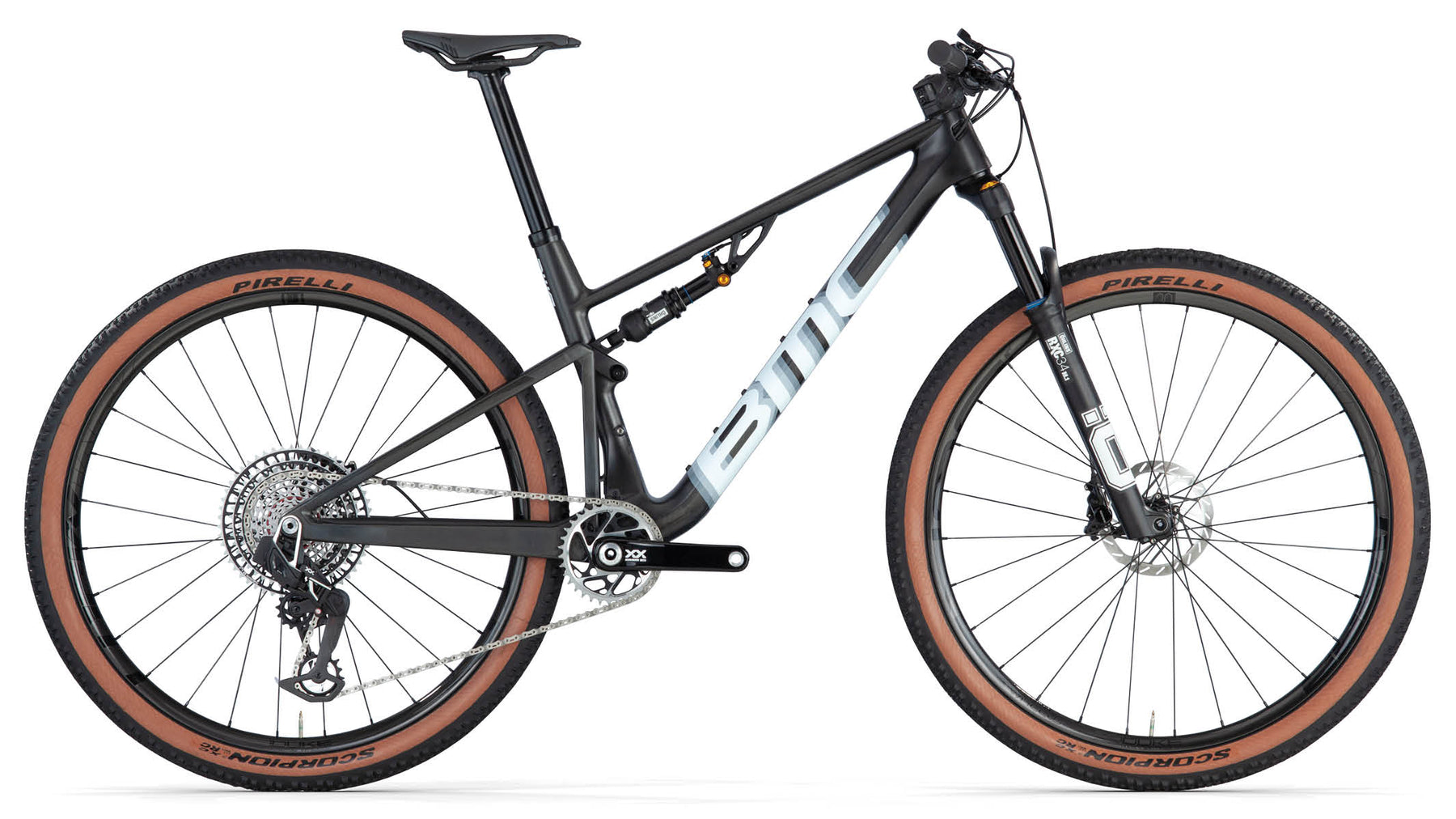

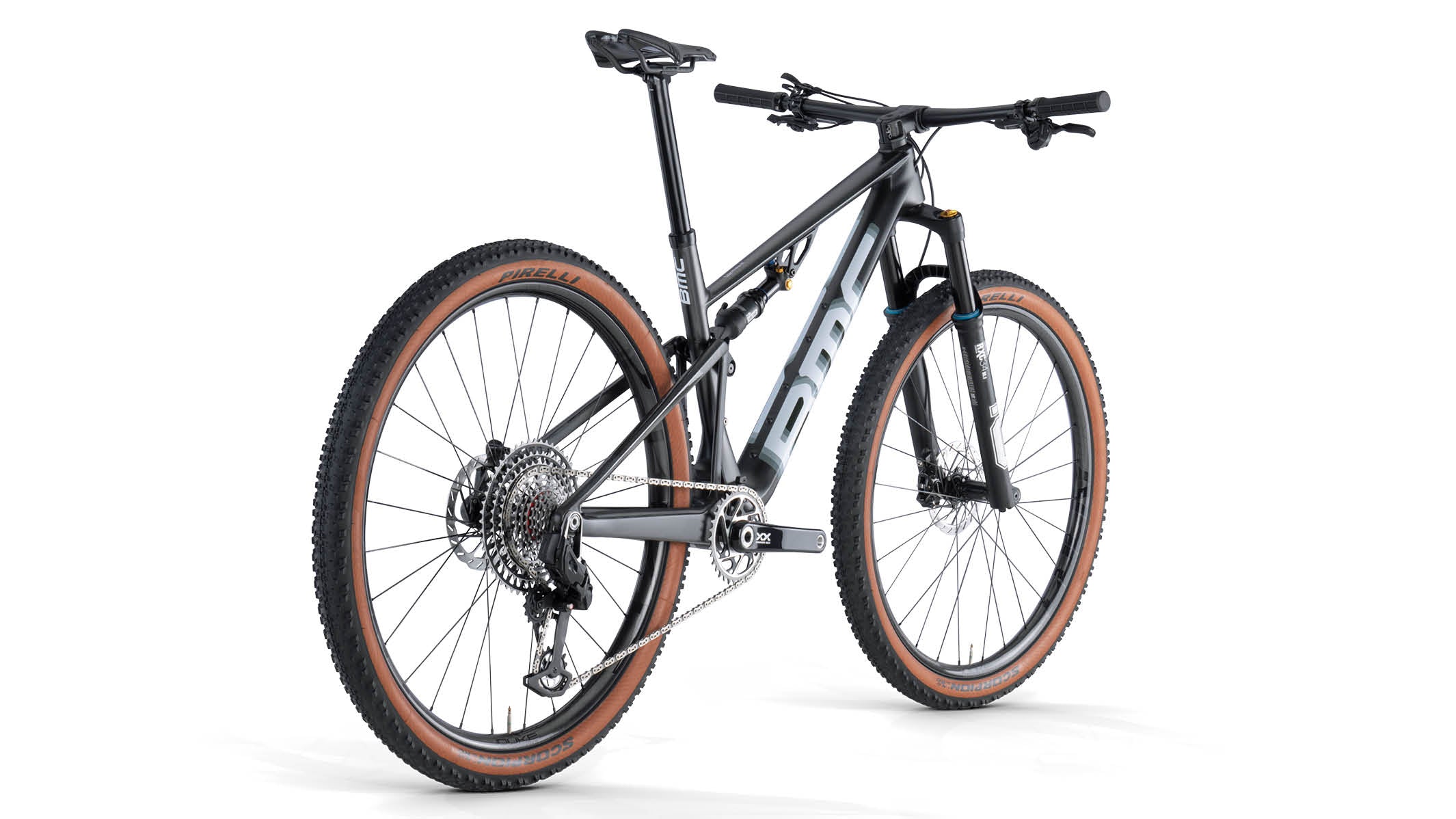

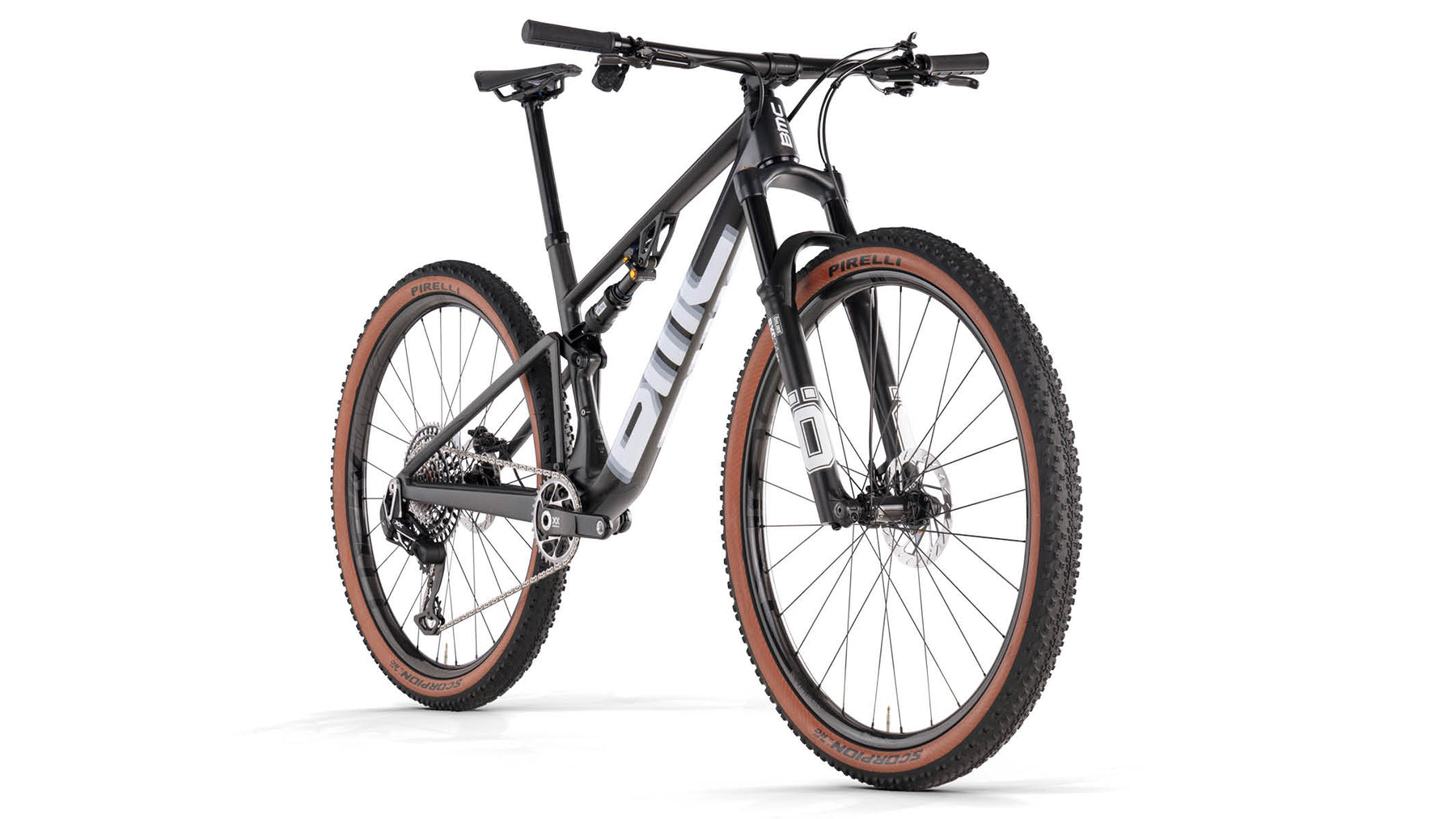

Fourstroke 01 TEAM

CARBON BLACK / WHITE

Limited Edition Fourstroke 01
SRAM XX SL Eagle Transmission Drivetrain
Öhlins Suspension

Regular priceUSD 13,499.00
USD /

SKU: 30006328
Size

Fourstroke 01 TEAM

Parts & Accessories

  • Shipped to your local bike shop
Designed to be raced. The Fourstroke 01 TEAM Edition features a superlight carbon frame with carbon finish, BMC’s renowned Autodrop Technology, top-end SRAM XX SL Eagle Transmission drivetrain and perfectly paired with Öhlins suspensions. The featherlight build is finished off with the Duke Lucky Jack Carbon Wheelset, bringing it to an eye wateringly light 10.3kg!

Technology

Technical Overview

Frameset

Frame:
Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Fork:
Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout

Suspension

Front Suspension:
Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout

Rear Suspension:
Öhlins TXC2 Air | DT Swiss Remote Lockout

Remote Lockout:
DT Swiss Remote Lockout

Cockpit

Stem:
BMC MSM 01

Handlebar:
BMC MFB 01 Carbon | 760mm

Seat

Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop

Saddle:
Prologo Dimension NDR

Drivetrain

Crankset:
SRAM XX SL Eagle Carbon

Chainrings:
34T

Cassette:
SRAM XX SL Eagle Transmission XS-1299

Cassette Size:
10-52T

Chain:
SRAM XX SL Eagle Transmission Flattop

Rear Derailleur:
SRAM XX SL Eagle Transmission

Shifters:
SRAM AXS Pod Controller

Gears:
1 x 12

Bottom Bracket:
PF92 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Level Ultimate

Rotors:
SRAM HS2

Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL

Wheels

Rims:
Duke Lucky Jack SLS4 | 28 Spokes | Inner Width 30mm (F), 28mm (R)

Hubs (F/R):
Duke Madmax

Tires:
Pirelli Scorpion XC RC | 2.4"

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
62mm

Weight without Pedals:
10.3 Kg

ASTM Classification:
Level 3

System Weight Limit:
110kg

Size S M L XL
Rider Height <172 172-182 180-188 >188
Reach 437 457 477 500
Stack 584 592 600 615
Bar Rise 4 4 4 4
Bar Sweep 8 8 8 8
Bar Width 760 760 760 760
BB Drop 53 53 53 53
Crank Length 170 170 175 175
Fork Length 513 513 513 513
Fork Rake 44 44 44 44
Front Center 714 738 762 791
Head Tube 83.84 93.5 101.25 117.58
Head Tube Angle 66.5 66.5 66.5 66.5
Rear Center 432 432 432 432
Seat Angle 76.7 76.7 76.7 76.7
Seat Tube 420 440 470 510
Seatpost Drop 80 80 80 80
Standover Height 725 725 725 725
Stem Angle -5 -5 -5 -5
Stem Length 50 60 60 70
Top Tube 574 597 621.2 649.23
Trail 113 113 113 113
Wheelbase 1139 1171 1188 1218
