Engineered to perform, meet the Teammachine SLR. The result of over a decade of relentless development, crafted from lightweight premium carbon with TCC Race compliance and a D-Shape Carbon seatpost, it delivers the legendary BMC ride feel - fast, responsive, and comfortable. Powered by the newest SRAM Force AXS drivetrain, equipped with a power meter, enhanced with our high end ICS Carbon Evo one-piece cockpit and fitted with carbon wheels, it's built for riders who demand precision. This bike sets the standard for modern road cycling.

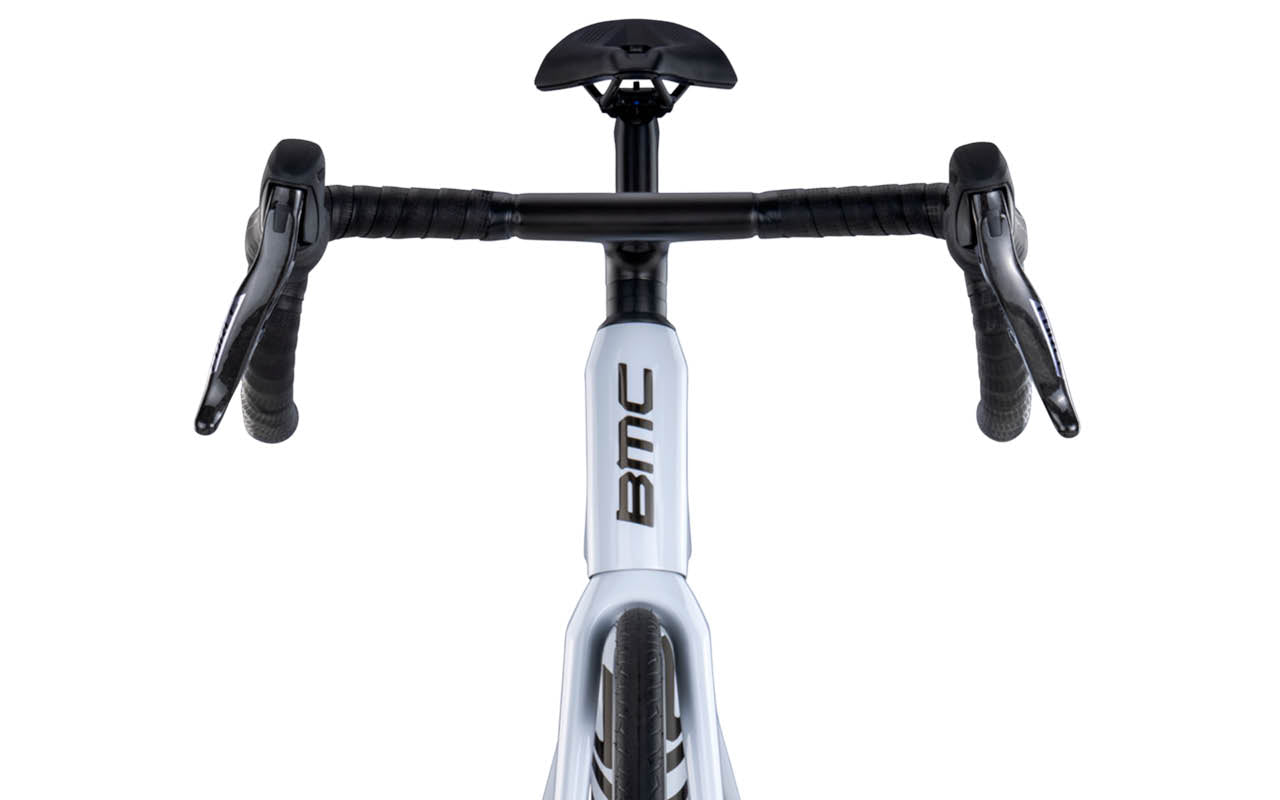

Accelerated Composites Evolution Technology + (ACE+)
Engineered to perform, meet the Teammachine SLR. The result of over a decade of relentless development, crafted from lightweight premium carbon with TCC Race compliance and a D-Shape Carbon seatpost, it delivers the legendary BMC ride feel - fast, responsive, and comfortable. Powered by the newest SRAM Force AXS drivetrain, equipped with a power meter, enhanced with our high end ICS Carbon Evo one-piece cockpit and fitted with carbon wheels, it's built for riders who demand precision. This bike sets the standard for modern road cycling.

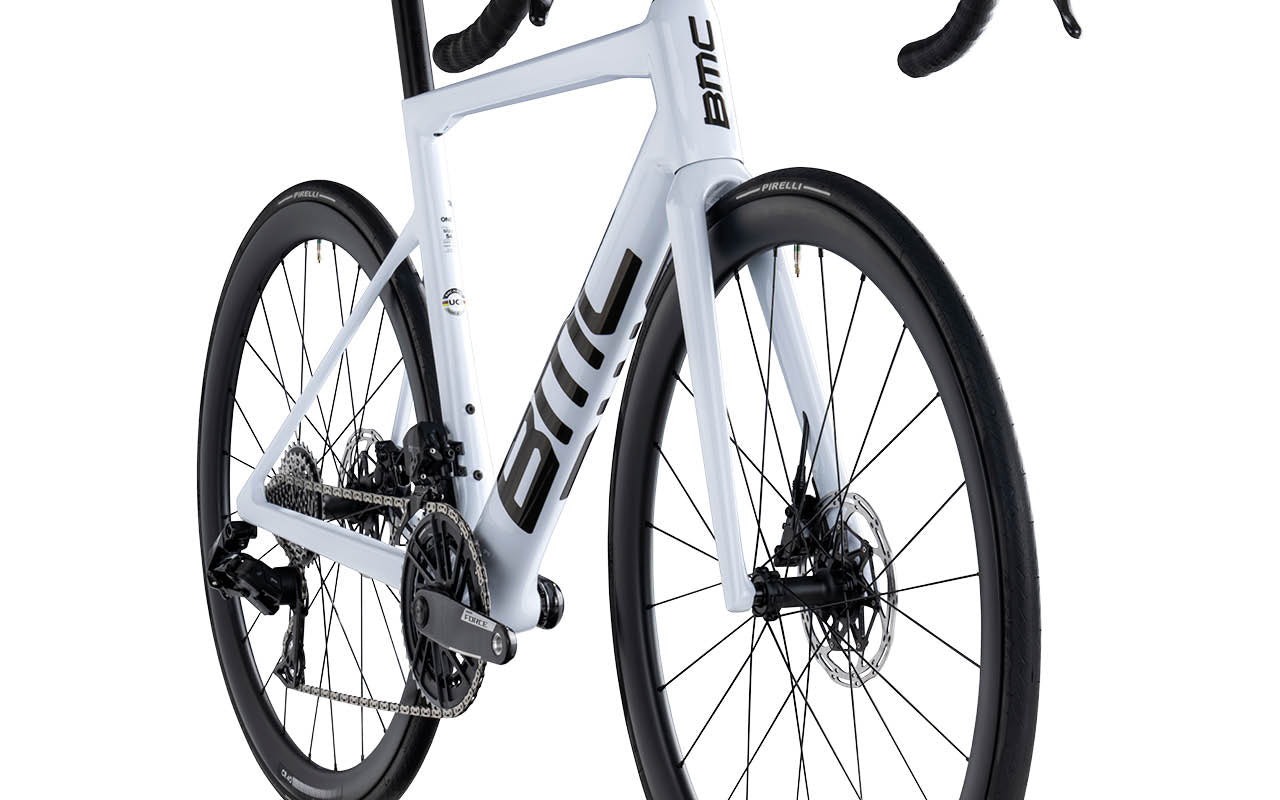

innovationTrue BMC Ride Feel
The Teammachine SLR delivers the same stiffness performance as the high-end SLR01 series, ensuring the signature BMC ride feel with every pedal stroke.

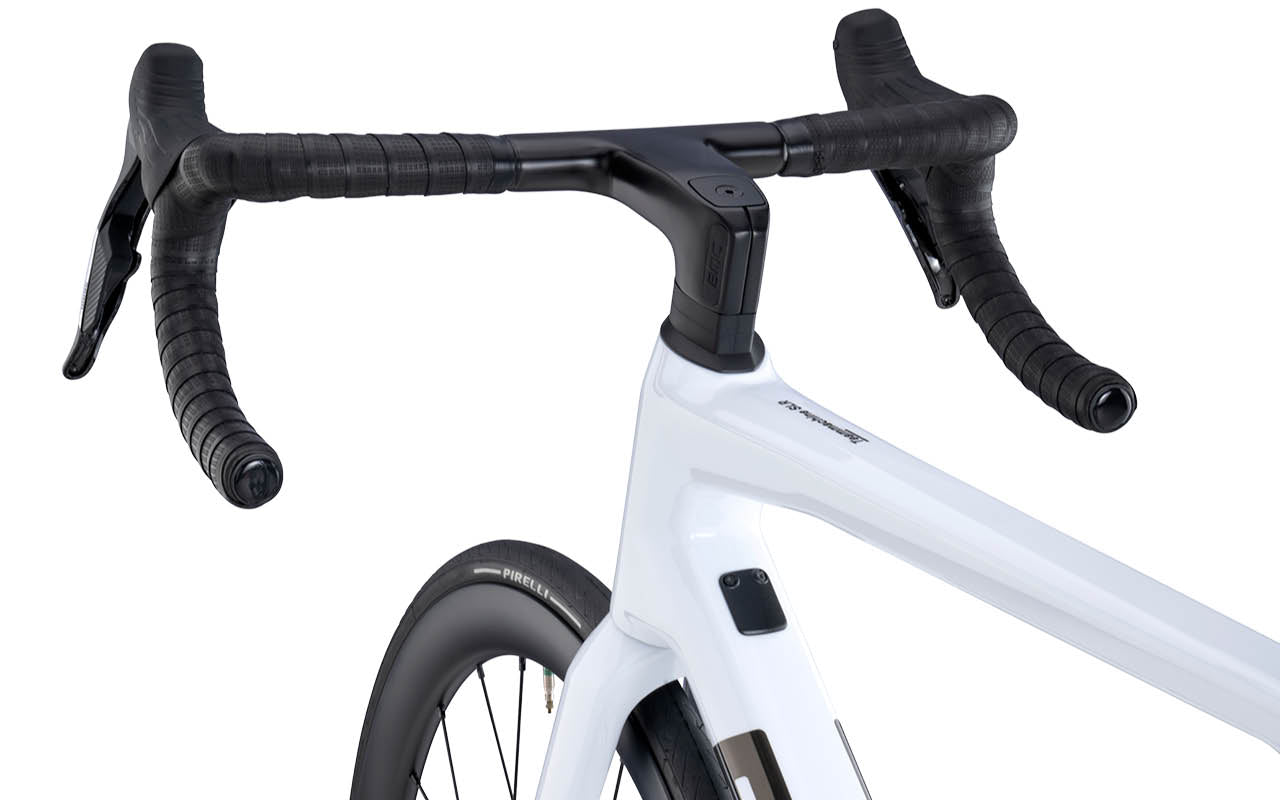

Aerocore and ICS
Details matter. The Integrated Cockpit System ensures stealth cable routing without compromising weight or stiffness. Optional bottle cages seamlessly enhance the aerodynamic frame design, reducing drag and improving aesthetics.

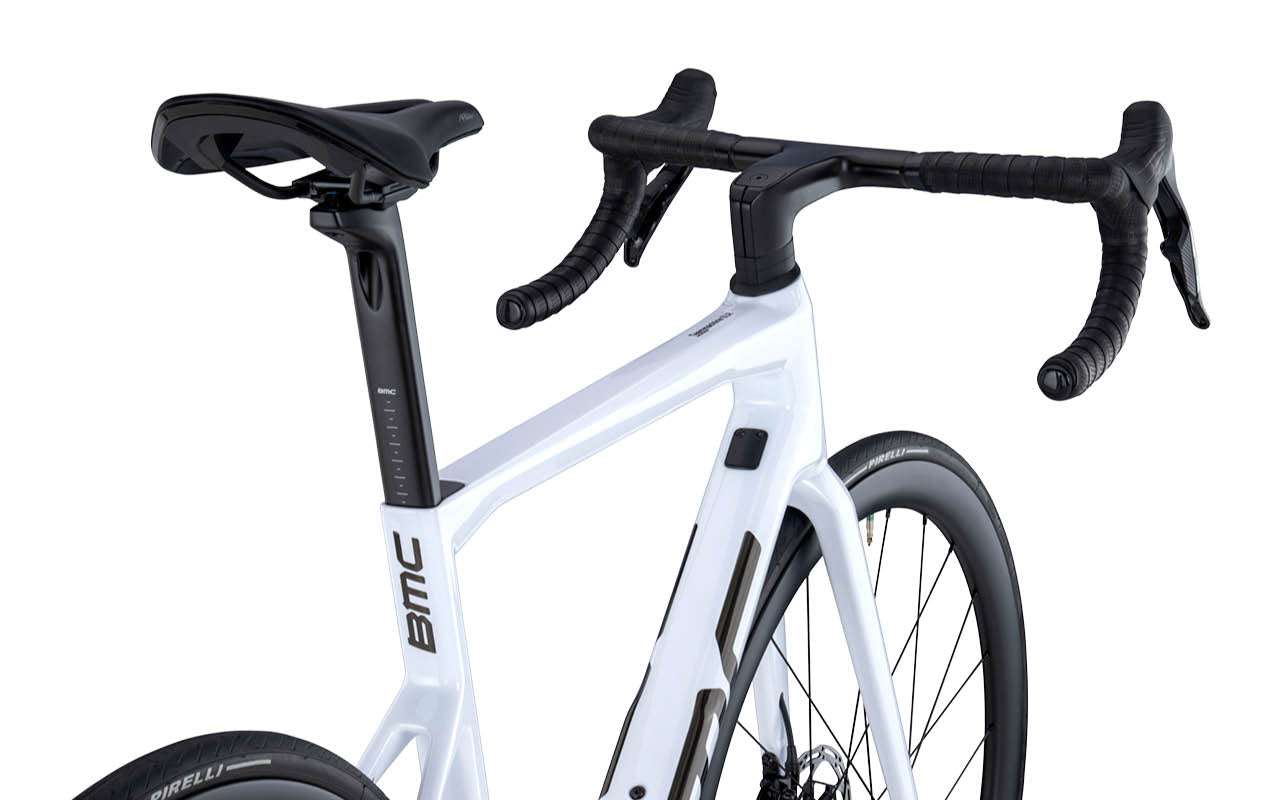

Comfort Is Speed
The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology.
Technical Overview
Frameset
Frame:
Teammachine SLR Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages
Fork:
Teammachine SLR Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61
Cockpit
Handlebar:
ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare
Seat
Seatpost:
Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset
Saddle:
Fizik Argo Vento R5 | 140mm
Drivetrain
Crankset:
SRAM Force AXS (FC-FRC-P-E1)
Chainrings:
48-35T
Power Meter:
SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1)
Cassette:
SRAM Force (CS-XG-1270-E1)
Cassette Size:
10-33T
Chain:
SRAM Force (CN-FRC-E1)
Front Derailleur:
SRAM Force AXS (FD-FRC-E-E1)
Rear Derailleur:
SRAM Force AXS (RD-FRC-E-E1)
Shifters:
SRAM Force AXS (ED-FRC-E1)
Gears:
2 x 12
Bottom Bracket:
SRAM Press Fit DUB
Brakes
Brake Levers / Calipers:
SRAM Force AXS (ED-FRC-E1)
Rotors:
SRAM Centerline X | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CRD-351 Carbon | Tubeless Ready | 35mm [or] CRD-351 SL Carbon | Tubeless Ready | 35mm [or] CR 40 Carbon | Tubeless Ready | 40mm
Hubs (F/R):
CRD-351: TXC-712 & TXC-142S Centerlock [or] CRD-351 SL: TXC-812 & TXC-240A Center Lock [or] CR 40: TXC-812 & TXC-2406 Center Lock
Tires:
Pirelli P Zero Road TLR | Tubeless | 26mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Computer mount for Garmin and Wahoo
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:
7.7kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 127 | 127 | 127 | 127 | 127 | 127 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 400/436 | 400/436 | 400/436 | 400/436 | 400/436 | 420/456 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Tube | 423 | 468 | 504 | 524 | 545 | 574 |
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 380 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | -12 | -12 | -12 | -12 | -12 | -12 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 517 | 534 | 549 | 559 | 574 | 589 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
