Tecnología
Descripción técnica
Cuadro
Cuadro:

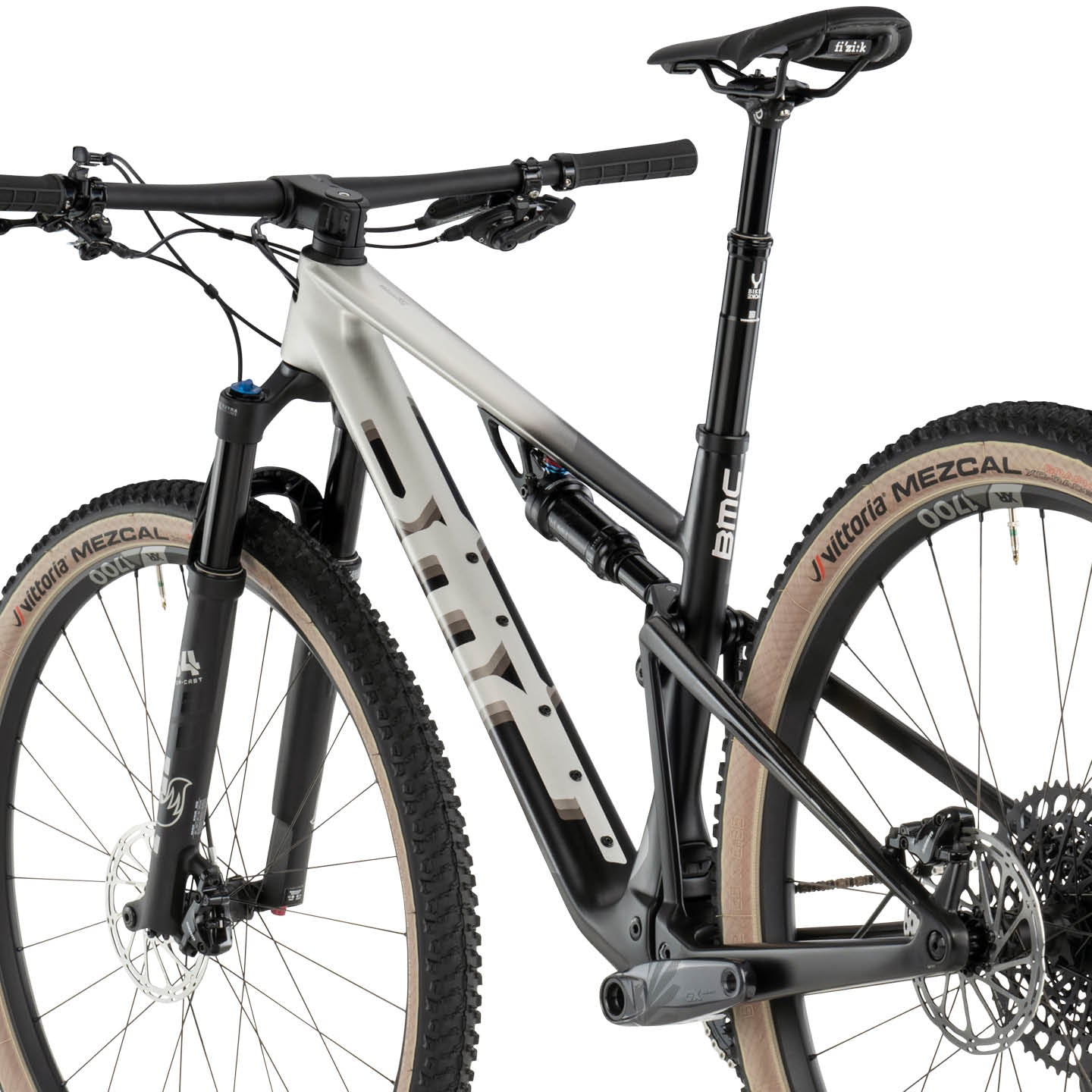

Fourstroke Carbon | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Horquilla:
Fox Float 34 Step Cast Performance
Suspensión
Suspensión Delantera:
Fox Float 34 Step Cast Performance
Suspensión Trasera:
Fox Float DPS Performance
Bloqueo Remoto:
DT Swiss Remote Lockout
Cockpit
Potencia:
BMC MSM 01
Manillar:
BMC MFB 02 Alloy | 750mm
Seat
Tija de Sillín:
Bikeyoke Divine
Sillín:
Fizik Antares R7
Transmisión
Platos y Bielas:
SRAM GX Eagle
Platos:
34T
Cassette:
SRAM XG-1275 Eagle
Tamaño del cassette:
10-52T
Cadena:
SRAM GX Eagle
Cambio Trasero:
SRAM GX Eagle
Manetas de Cambio:
SRAM GX Eagle
Marchas:
1 x 12
Pedalier:
PF92 Bottom Bracket
Frenos
Pinzas de Freno:
SRAM Level TL
Discos:
SRAM Centerline Rotors
Tamaño del disco:
160 / 160 S-M | 180 / 160 L-XL
Ruedas
Llantas:
DT Swiss XR 1700 | 25mm Inner Width
Bujes:
DT Swiss 350 Straightpull | Ratchet 36 SL
Neumáticos:
Vittoria Mezcal | 2.35"
Información Tubeless:
Tubeless Ready Rims | Tubetype Tires
Información adicional
Paso de rueda:
62mm
Clasificación ASTM:
Level 3
Límite de peso del sistema:
110kg
Size | S | M | L | XL |
---|---|---|---|---|
Rider Height | <172 | 172-182 | 180-188 | >188 |
Reach | 437 | 457 | 477 | 500 |
Stack | 584 | 592 | 600 | 615 |
Bar Rise | 4 | 4 | 4 | 4 |
Bar Sweep | 8 | 8 | 8 | 8 |
Bar Width | 760 | 760 | 760 | 760 |
BB Drop | 53 | 53 | 53 | 53 |
Crank Length | 170 | 170 | 170 | 175 |
Fork Length | 513 | 513 | 513 | 513 |
Fork Rake | 44 | 44 | 44 | 44 |
Front Center | 714 | 738 | 762 | 791 |
Head Tube | 83.84 | 93.5 | 101.25 | 117.58 |
Head Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 |
Rear Center | 432 | 432 | 432 | 432 |
Seat Angle | 76.7 | 76.7 | 76.7 | 76.7 |
Seat Tube | 420 | 440 | 470 | 510 |
Seatpost Drop | 80 | 80 | 100 | 100 |
Standover Height | 725 | 725 | 725 | 725 |
Stem Angle | -5 | -5 | -5 | -5 |
Stem Length | 50 | 60 | 60 | 70 |
Top Tube | 574 | 597 | 621.2 | 649.23 |
Trail | 113 | 113 | 113 | 113 |
Wheelbase | 1139 | 1171 | 1188 | 1218 |
