Technologie
Technische Übersicht
Rahmenset
Rahmen:

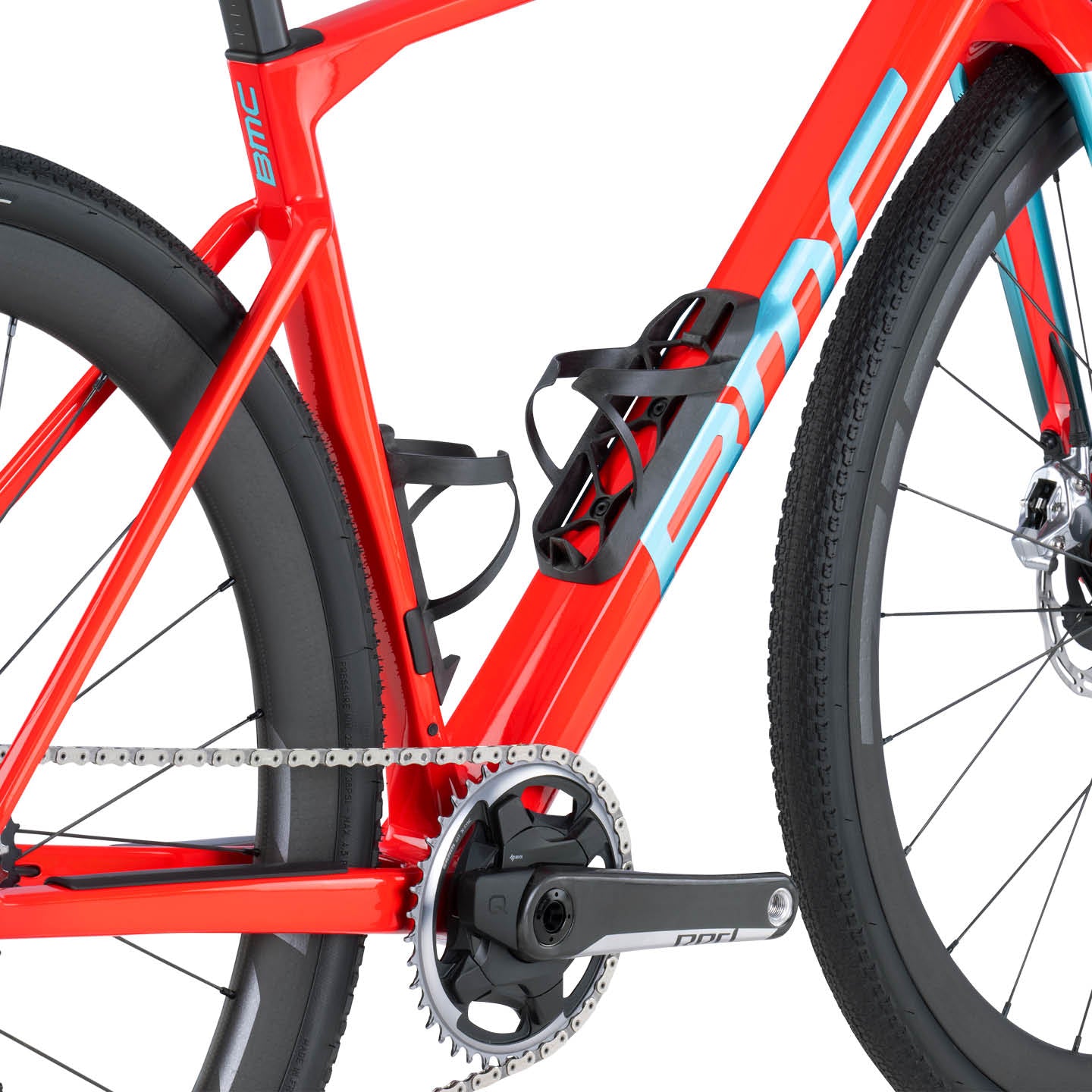

Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Gabel:
Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Lenker:
ICS Carbon Evo | One Piece Full Carbon Cockpit
Sattel
Sattelstütze:
Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Sattel:
Fizik Vento Argo R1 | 140mm
Antrieb
Kurbel:
SRAM RED AXS 1 DUB WIDE
Kettenblätter:
42T
Leistungsmesser:
SRAM RED AXS 1 DUB WIDE Power Meter
Kassette:
SRAM XPLR XG-1271
Kassettengrösse:
10-44T
Kette:
SRAM RED
Schaltwerk:
SRAM RED XPLR AXS
Schalthebel:
SRAM RED eTap AXS HRD
Übersetzung:
1 x 12
Tretlager:
PF86 Bottom Bracket
Bremsen
Bremshebel:
SRAM RED eTap AXS HRD
Bremsscheiben:
SRAM Centerline | Centerlock
Bremsscheibengrösse (V/H):
160 / 160mm
Räder
Felgen:
Zipp 303 Firecrest
Naben (V/H):
Zipp 303 Firecrest
Bereifung:
Pirelli Cinturato Gravel H | 40mm
Tubeless-Informationen:
Tubeless Ready Rims | Tubetype Tires
Weitere Informationen
Reifenfreiheit:
44mm
ASTM-Klassifizierung:
Level 2
Maximales Systemgewicht:
120kg
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
Reach | 390 | 397 | 401 | 405 | 410 | 414 |
Stack | 510 | 530 | 550 | 570 | 595 | 620 |
Bar Drop | 128 | 128 | 128 | 128 | 128 | 128 |
Bar Reach | 68 | 68 | 68 | 68 | 68 | 68 |
Bar Width | 400 / 436 | 400 / 436 | 400 / 436 | 400 / 436 | 400 / 436 | 400 / 436 |
BB Drop | 80 | 80 | 80 | 80 | 80 | 80 |
Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Fork Length | 387 | 387 | 387 | 387 | 387 | 387 |
Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
Front Center | 596 | 610 | 608 | 619 | 632 | 644 |
Head Tube | 85 | 106 | 123 | 144 | 170 | 196 |
Head Tube Angle | 71 | 71 | 72 | 72 | 72 | 72 |
Rear Center | 420 | 420 | 420 | 420 | 420 | 420 |
Seat Angle | 73 | 73 | 73 | 73 | 73 | 73 |
Seat Tube | 428 | 452 | 468 | 493 | 513 | 533 |
Seatpost Length | 280 | 320 | 360 | 360 | 400 | 400 |
Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height | 684 | 722 | 756 | 780 | 798 | 818 |
Stem Angle | -7.5 | -7.5 | -7.5 | -7.5 | -7.5 | -7.5 |
Stem Length | 80 | 90 | 90 | 100 | 100 | 110 |
Top Tube | 546 | 559 | 569 | 579 | 592 | 604 |
Trail | 68 | 68 | 68 | 68 | 68 | 68 |
Wheelbase | 1003 | 1017 | 1015 | 1026 | 1039 | 1051 |
